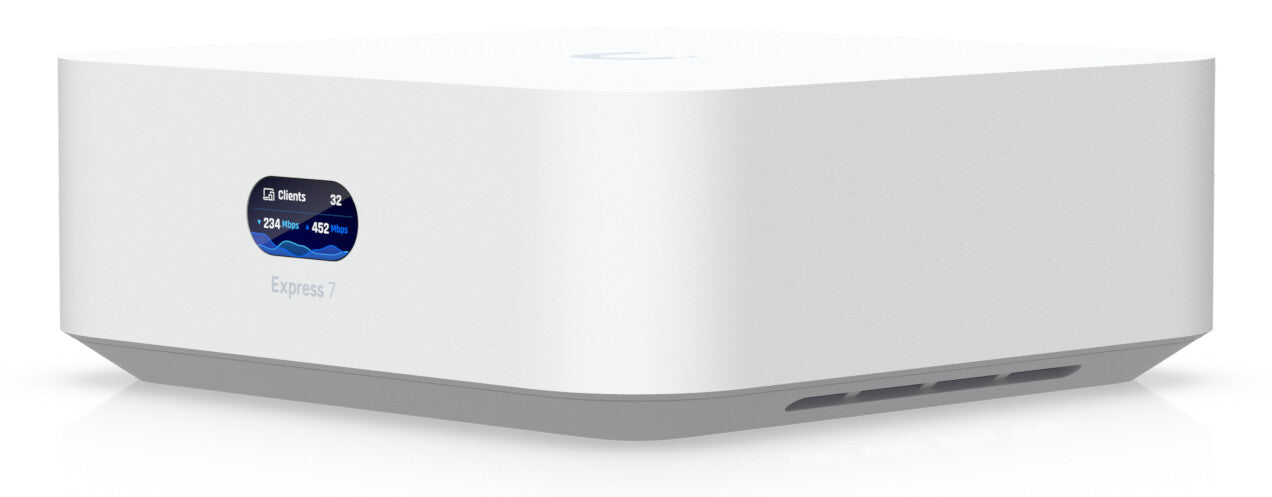

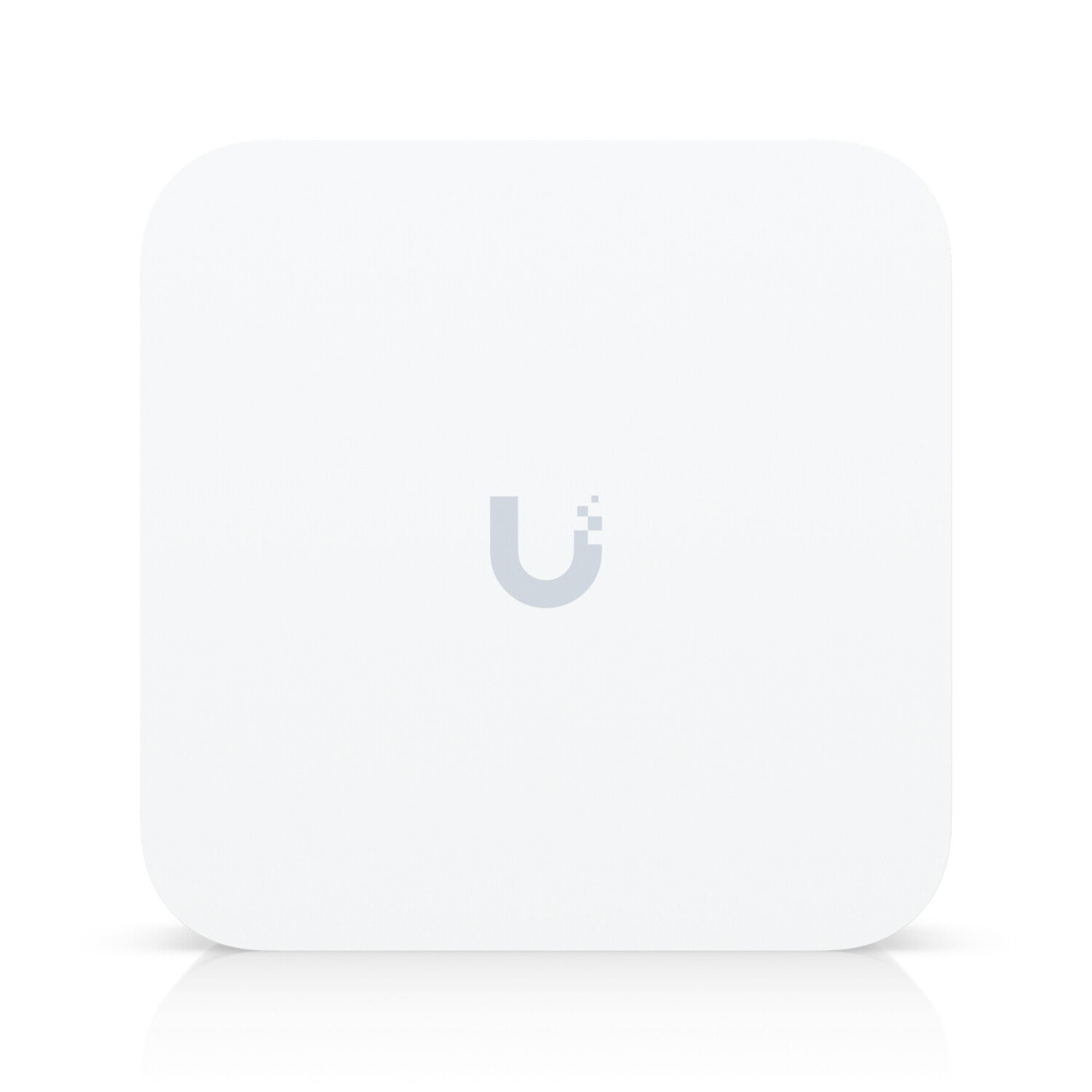

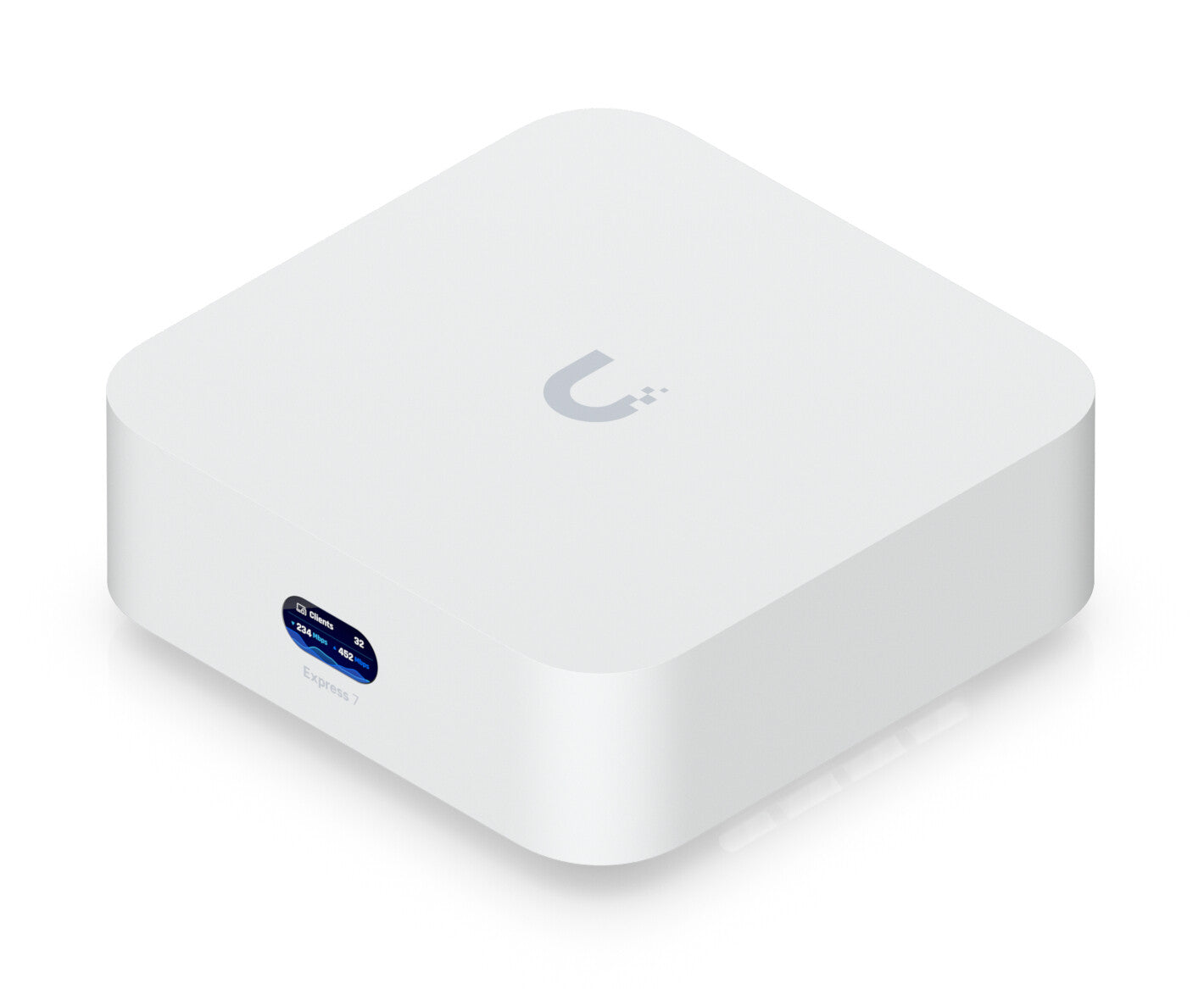

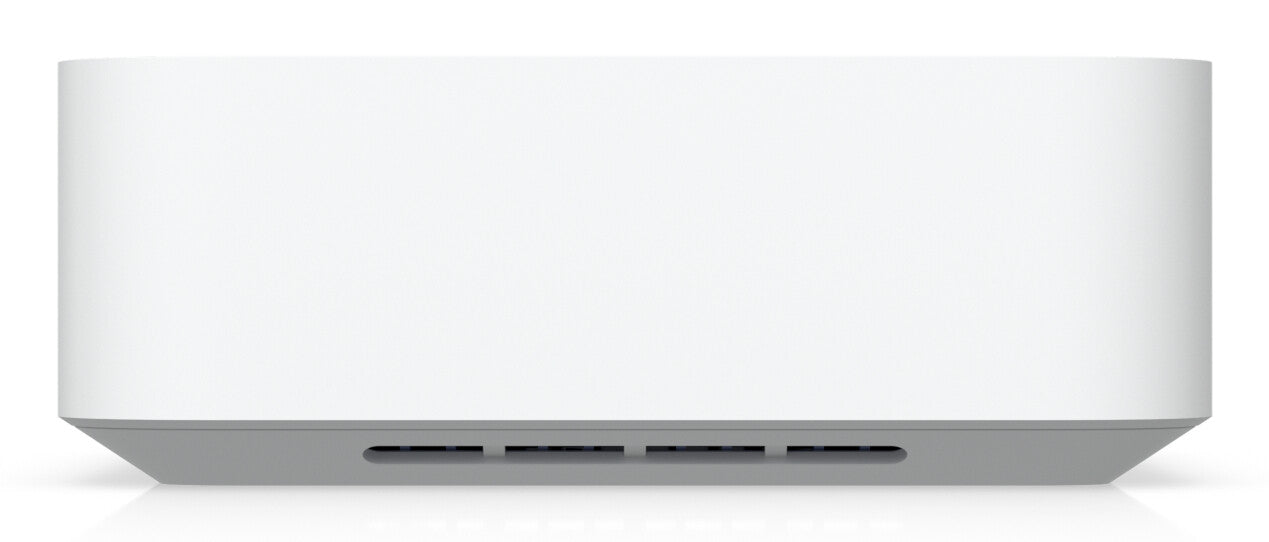

Ubiquiti UniFi Express 7 gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s
iFrame
£186.99
Couldn't load pickup availability
- 10,100,1000,2500,10000 Mbit/s Wi-Fi
- Control display unit Built-in processor 1500 MHz 3000 MB
- Antenna type: Internal 6 dBi
- Quality of Service (QoS) support VLAN support
- Enclosure material: Polycarbonate (PC)
- White
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
| Design | |
|---|---|
| LED indicators | Status |
| Enclosure material | Polycarbonate (PC) |
| Product colour | White |
| Features | |
|---|---|
| Antennas quantity | 4 |
| Antenna gain level (max) | 6 dBi |
| Antenna type | Internal |
| Performance | |
|---|---|
| Internal memory | 3000 MB |
| Number of processors installed | 1 |
| Processor frequency | 1500 MHz |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A53 |
| Built-in processor | Yes |
| Display type | LCM |
| Control display unit | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPF |
| DHCP server | Yes |
| Network | |
|---|---|
| Wireless connection | Yes |
| Data transfer rate | 5.7 Gbit/s |
| Frequency band | 2.4, 5, 6 GHz |
| Load balancing | Yes |
| Bluetooth | Yes |
| WLAN data transfer rates supported | 1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.1Q |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Security | |
|---|---|
| Firewall security | Yes |
| VLAN support | Yes |
| Security algorithms | 802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |

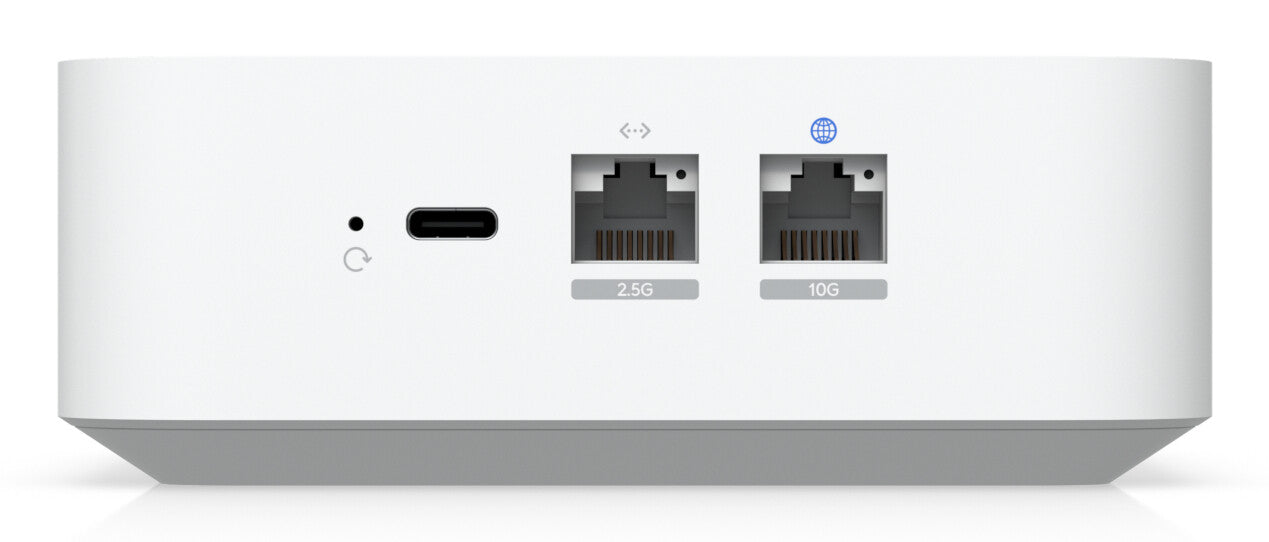

| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 2 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Reset button | Yes |
| Power | |
|---|---|
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection | Yes |
| Input current | 5 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 22 W |
| Weight & dimensions | |
|---|---|
| Weight | 422 g |
| Width | 117 mm |
| Depth | 117 mm |
| Height | 42.5 mm |

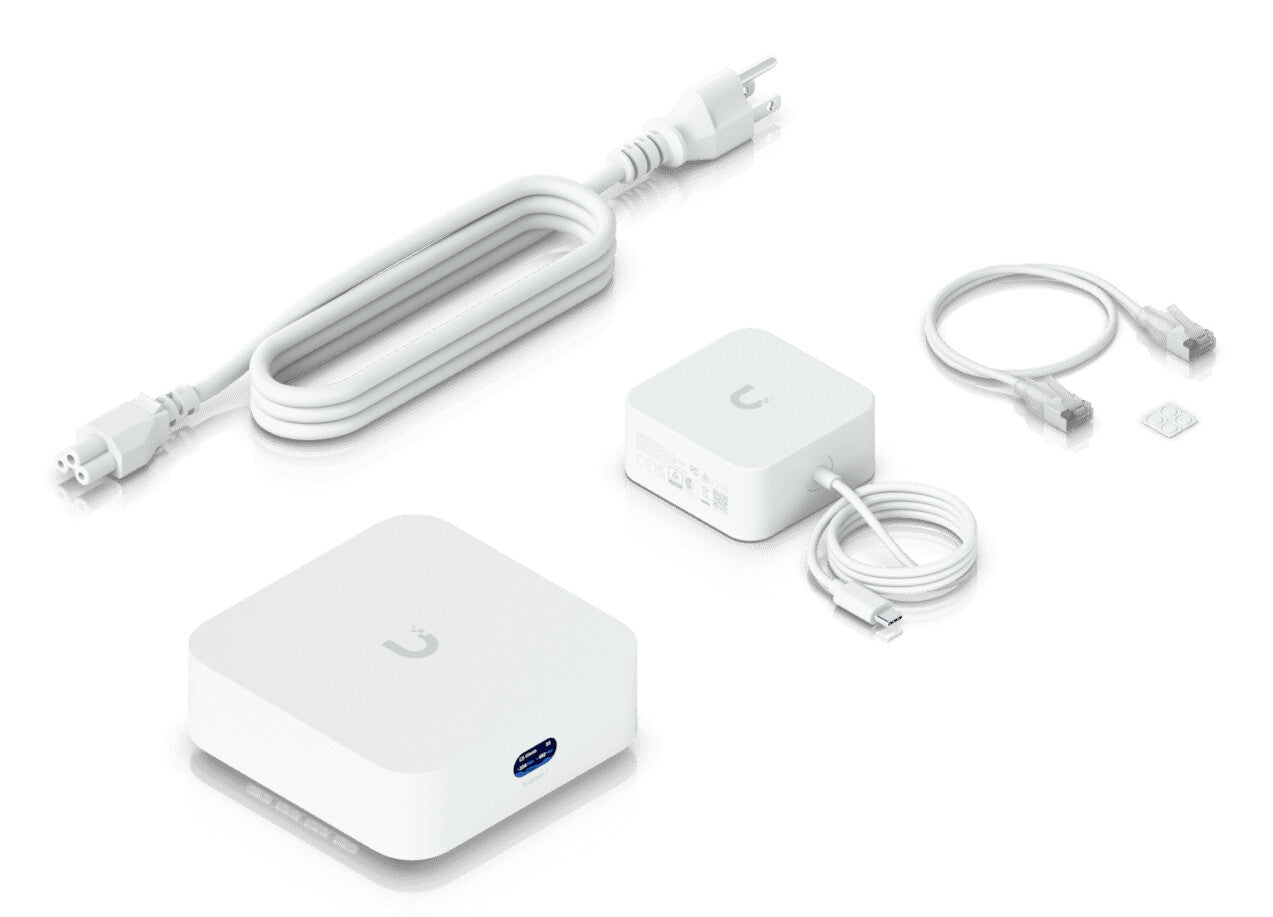

| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Power |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |

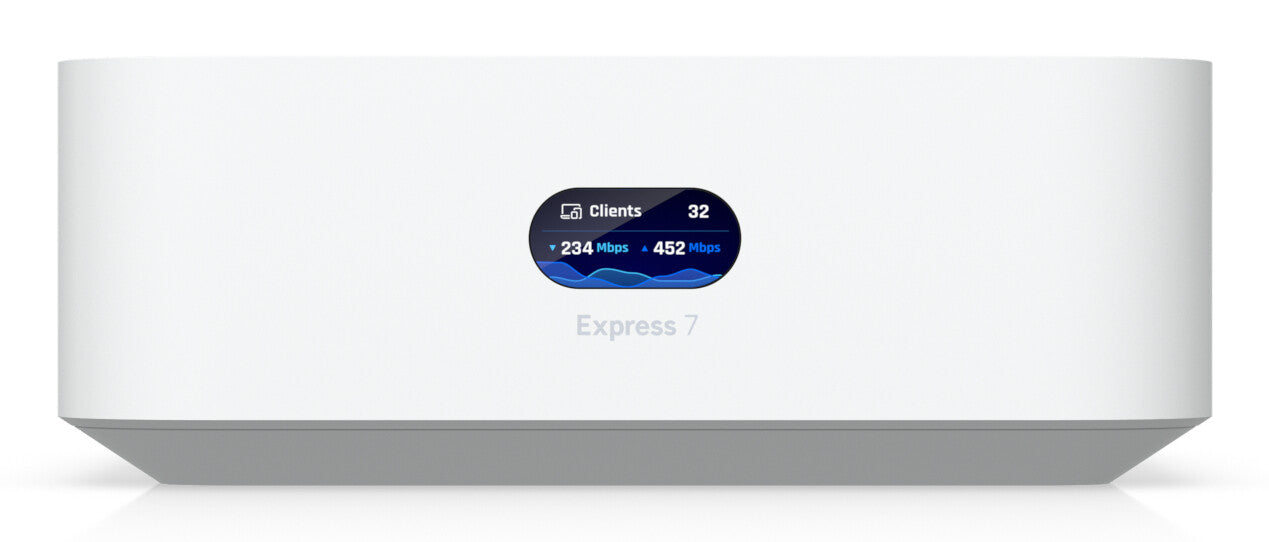

| Display | |
|---|---|
| Display diagonal | 2.44 cm (0.96") |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
