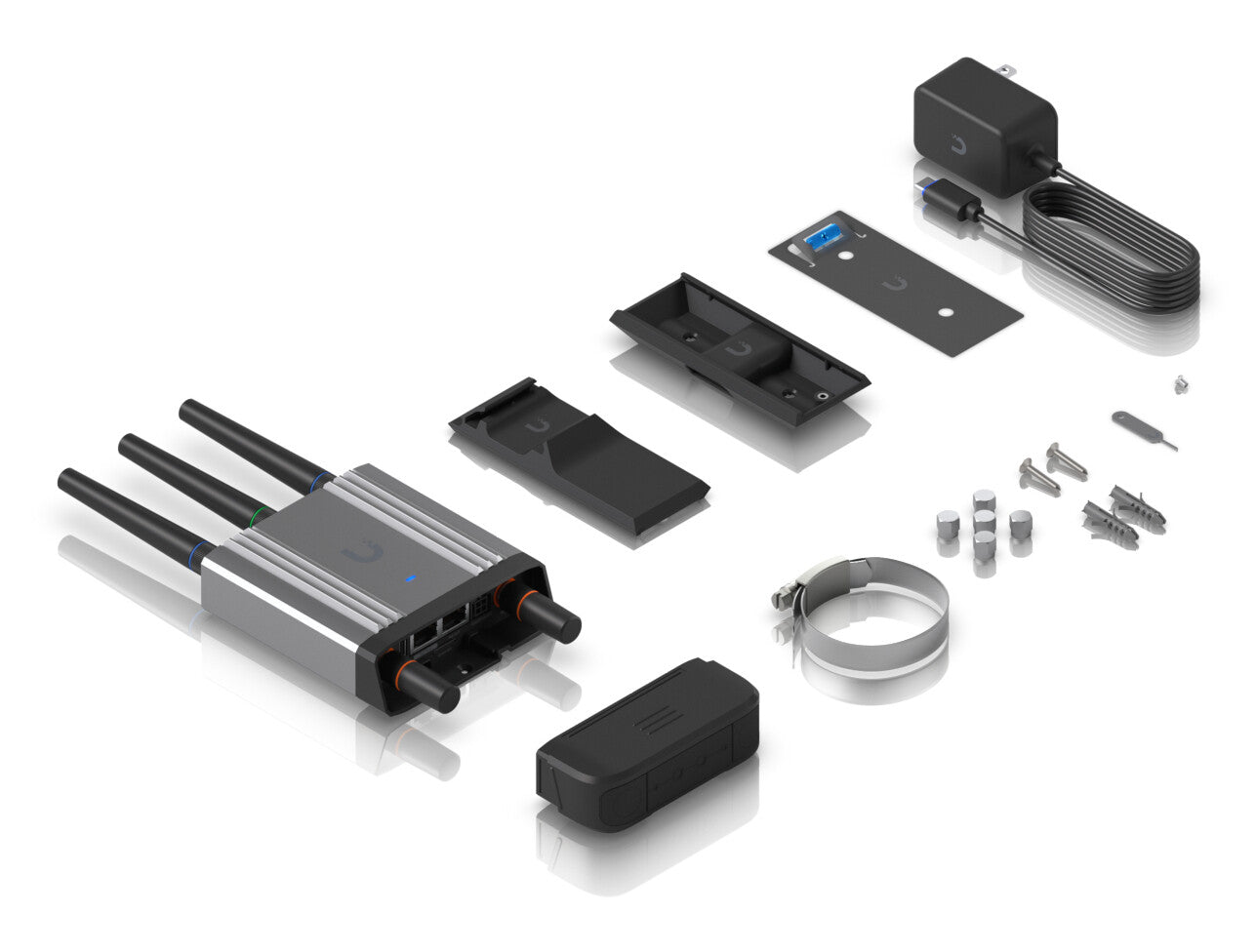

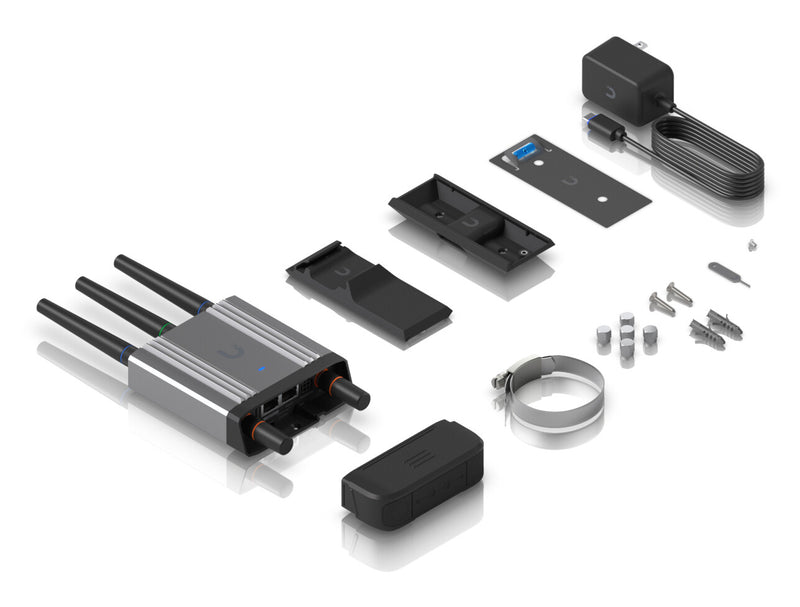

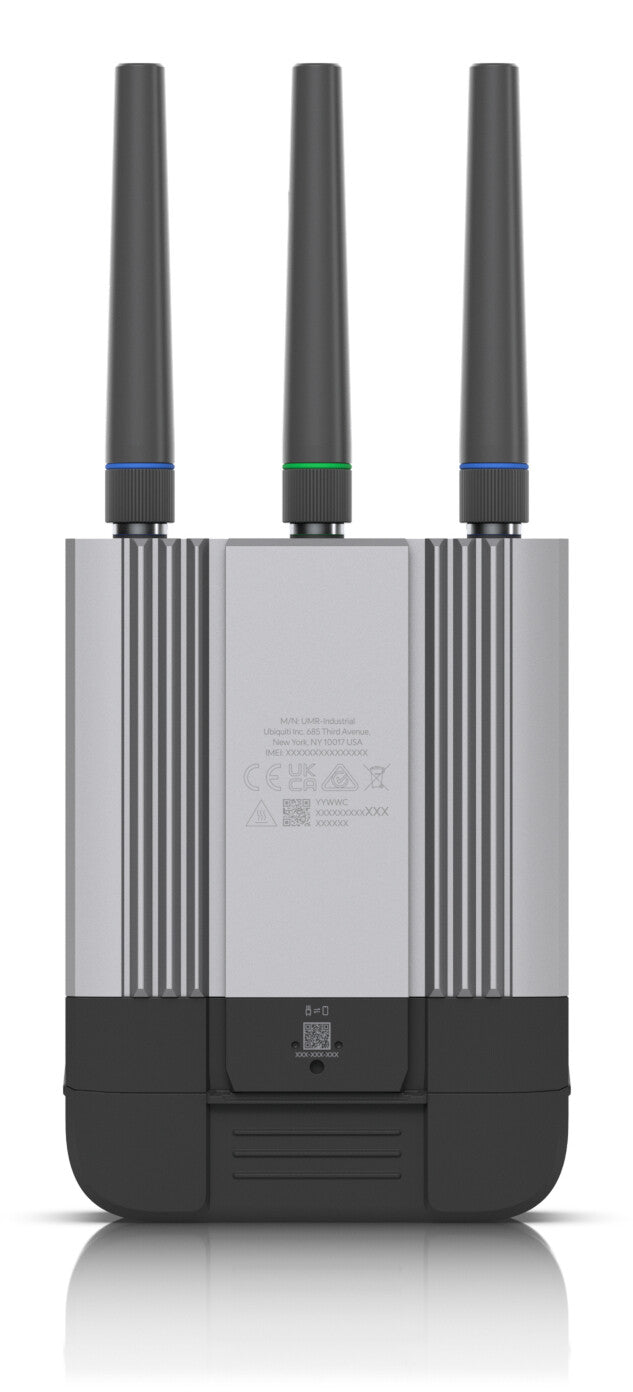

Ubiquiti UMR-Industrial Cellular network router
iFrame
£187.99
Couldn't load pickup availability
- Site-to-site VPN and VPN client routing

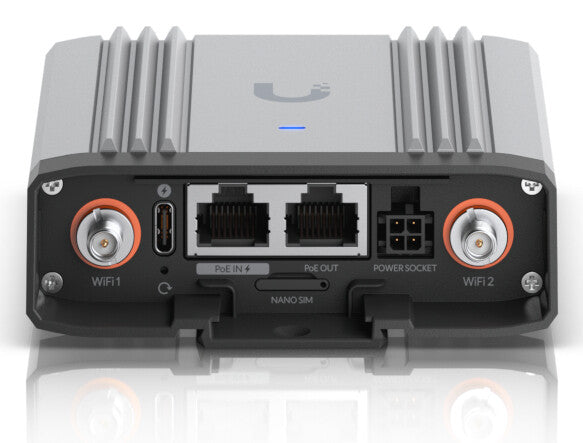

- (2) GbE ports with (1) PoE output
- Powered using PoE, USB Type-C, or 4-pin DC power socket
- Outdoor GPS location tracking
- Flexible wall, pole, and DIN rail mounting

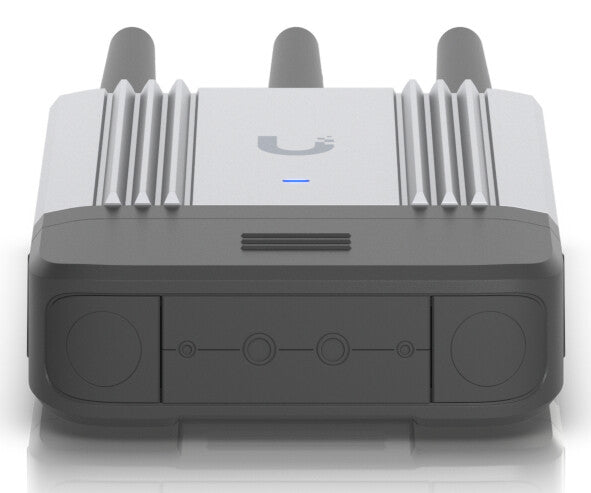

- Weatherproof (outdoor exposed) with the included cover
- Optional Mobility Cloud subscription
Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
| Design | |
|---|---|
| LED indicators | Status |
| Reset button | Yes |
| Suitable for indoor use | Yes |
| Suitable for outdoor use | Yes |
| Mounting | Wall/Pole/DIN-rail mounting |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | Black, Grey |
| Device type | Cellular network router |
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi frequency | 2.4 GHz |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,150,300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Mobile network | |
|---|---|
| Data transfer rate (LTE) (download) | 150 Mbit/s |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| SIM card type | NanoSIM |
| 4G standard | LTE |
| Data network | 3G, 4G |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB port type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 2 |
| Certificates | |
|---|---|
| Compliance certificates | CE |
| Performance | |
|---|---|

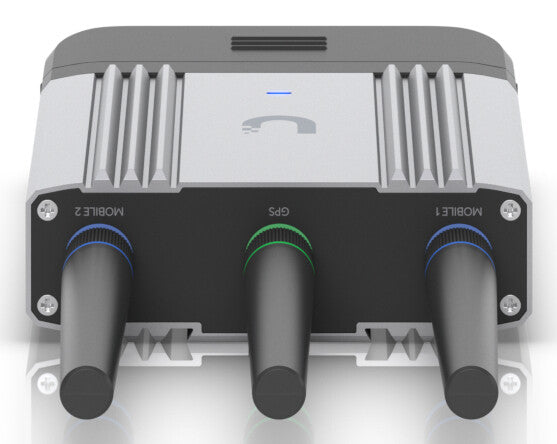

| Detachable antenna(s) | Yes |
| Antennas quantity | 3 |
| Antenna connector type | SMA/RP-SMA |
| Antenna type | External |
| GPS (satellite) | Yes |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 12.5 W |
| Output voltage | 48 - 54 V |
| Power source type | DC, PoE, USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Weight | 395 g |
| Height | 217 mm |
| Depth | 32 mm |
| Width | 94 mm |
| Packaging data | |
|---|---|
| User guide | Yes |
