Axis
£587.99
Stock Available: 0
  • AXIS Object Analytics; Built-in microphone for audio recording; Compact and flexible design; Lightfinder and Forensic WDR; Remote zoom and focus with i-CS

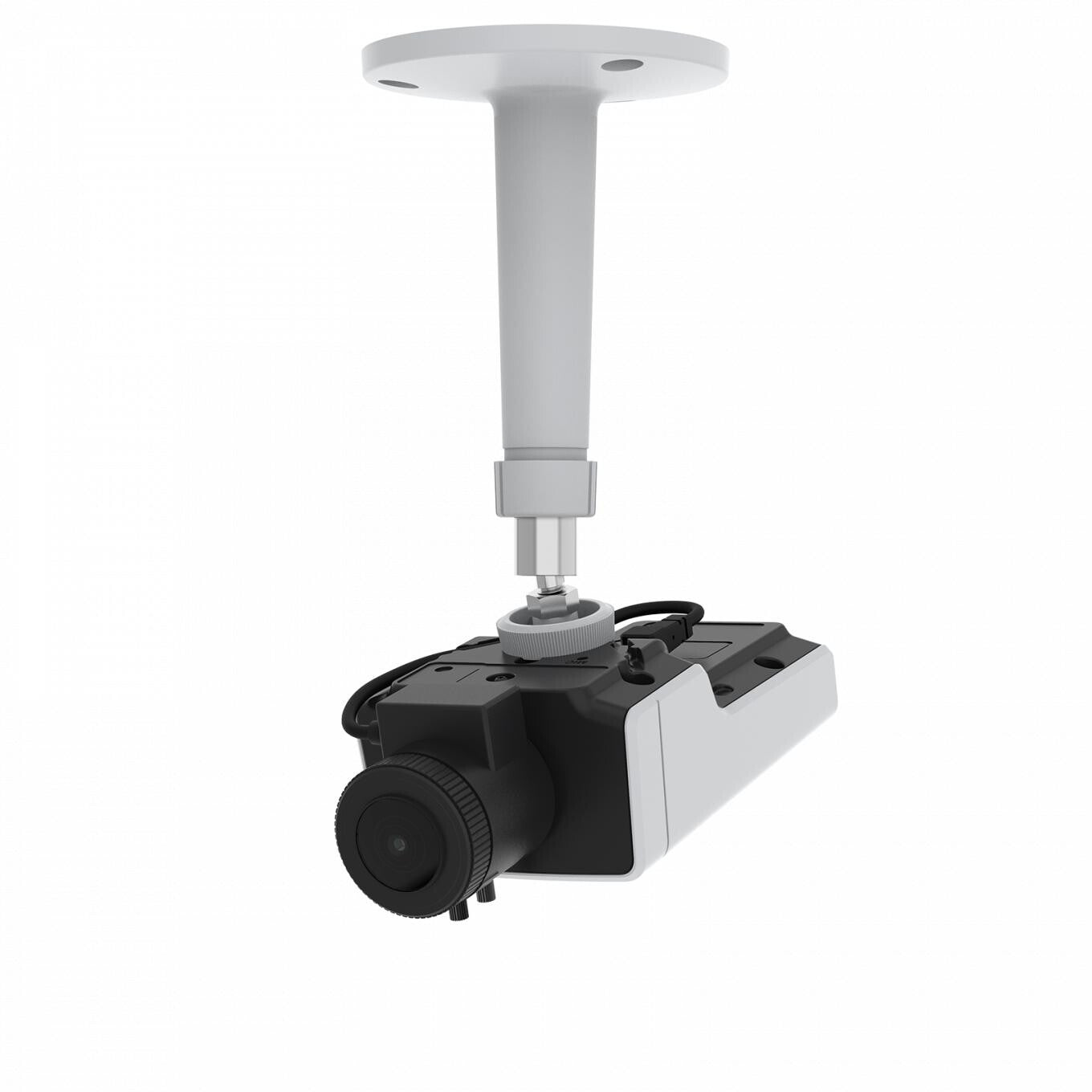

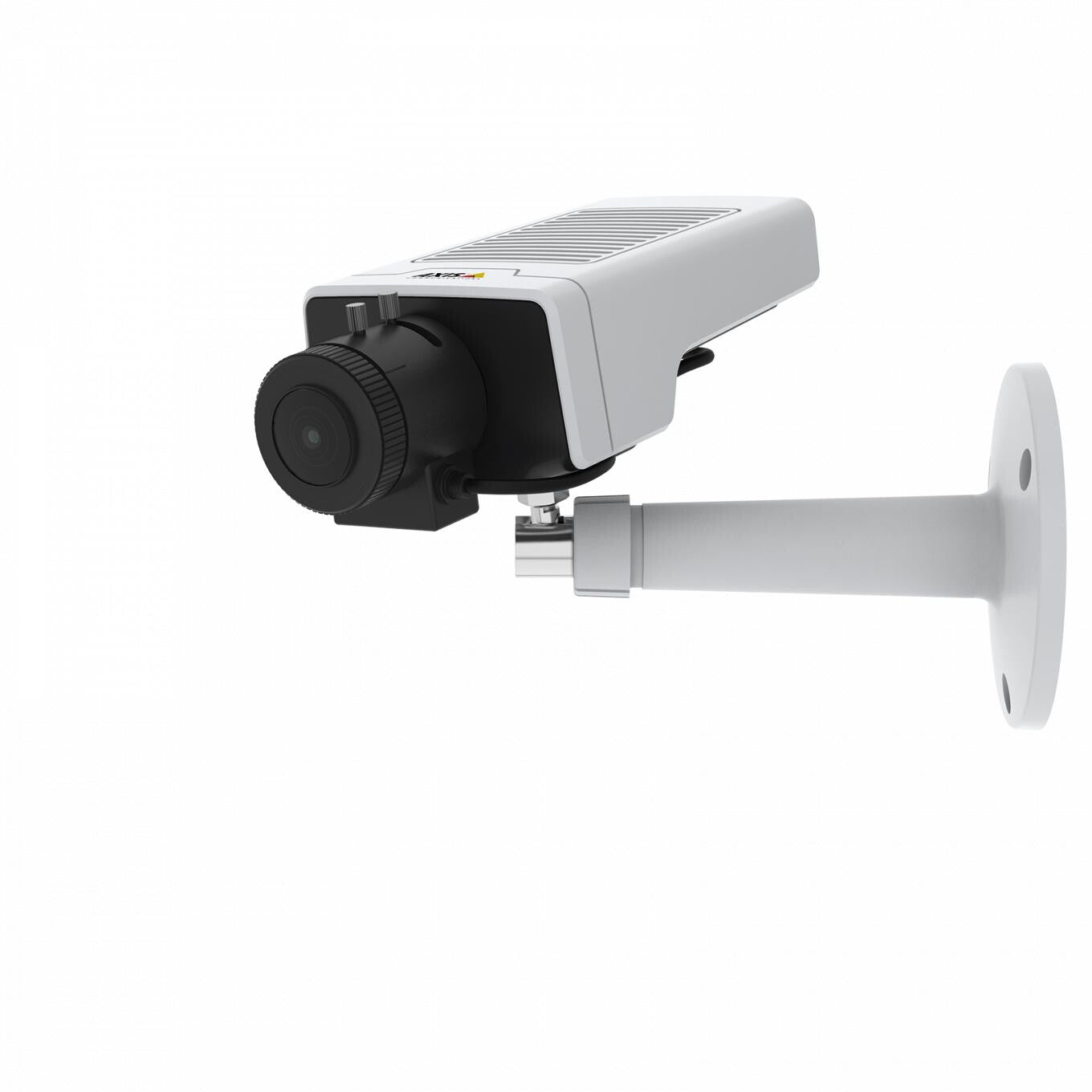

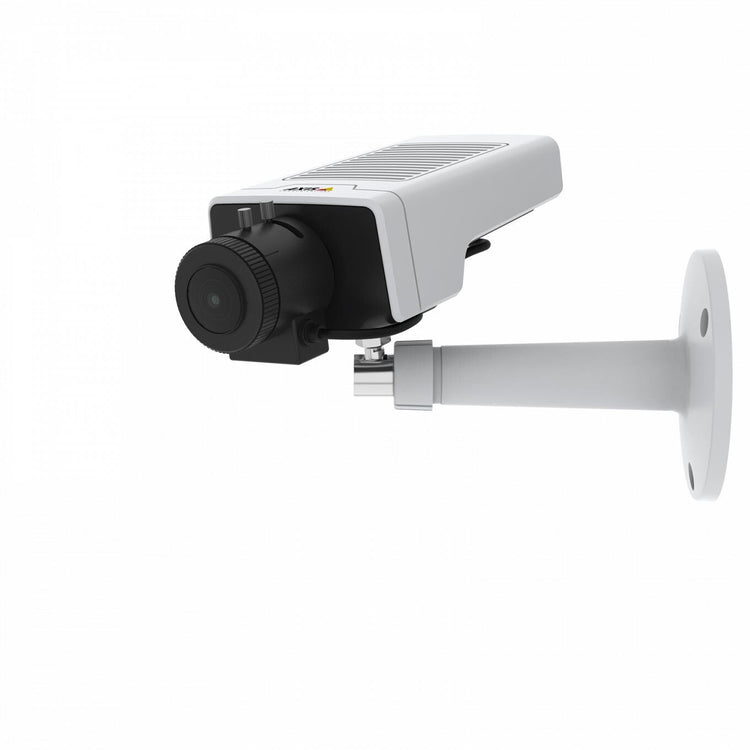

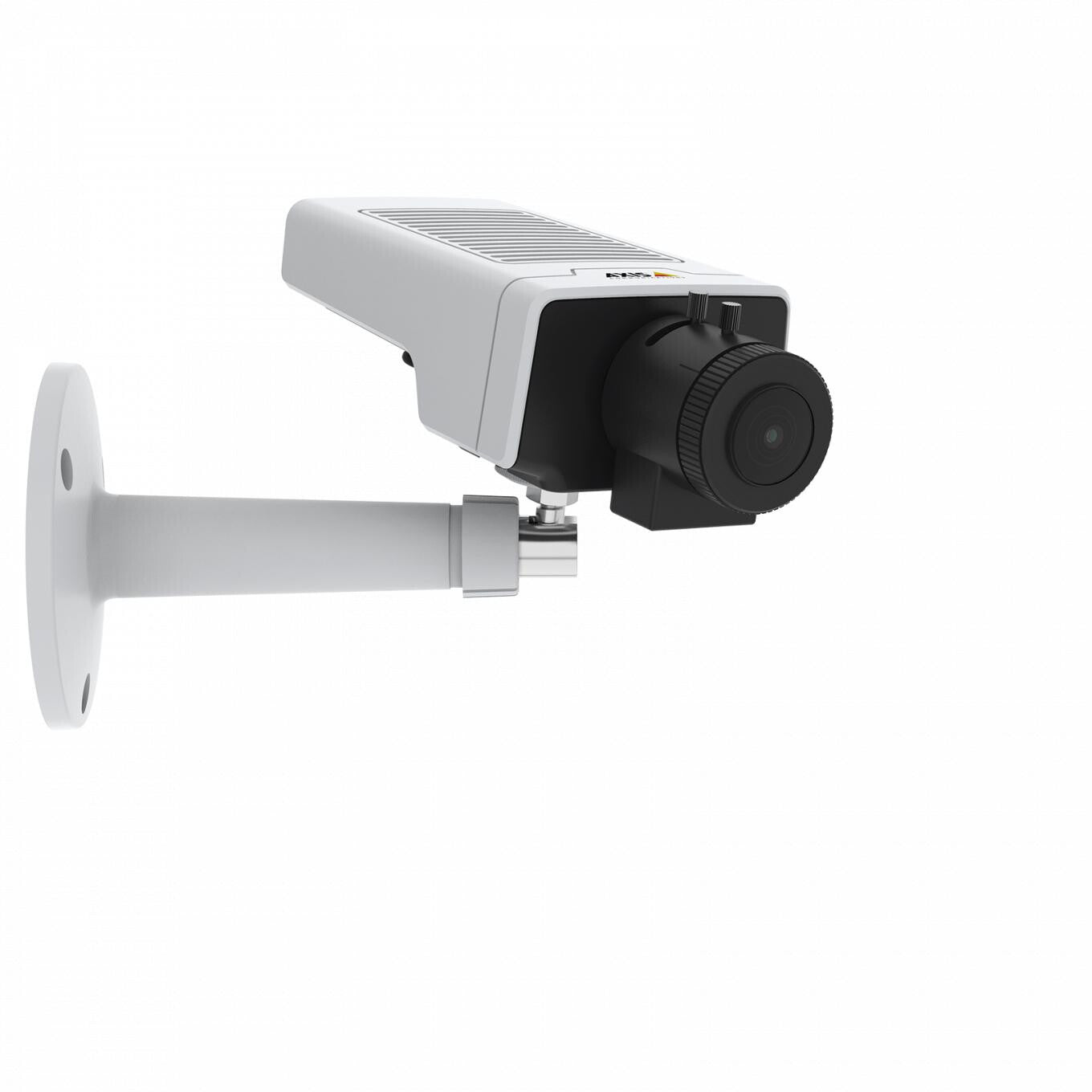

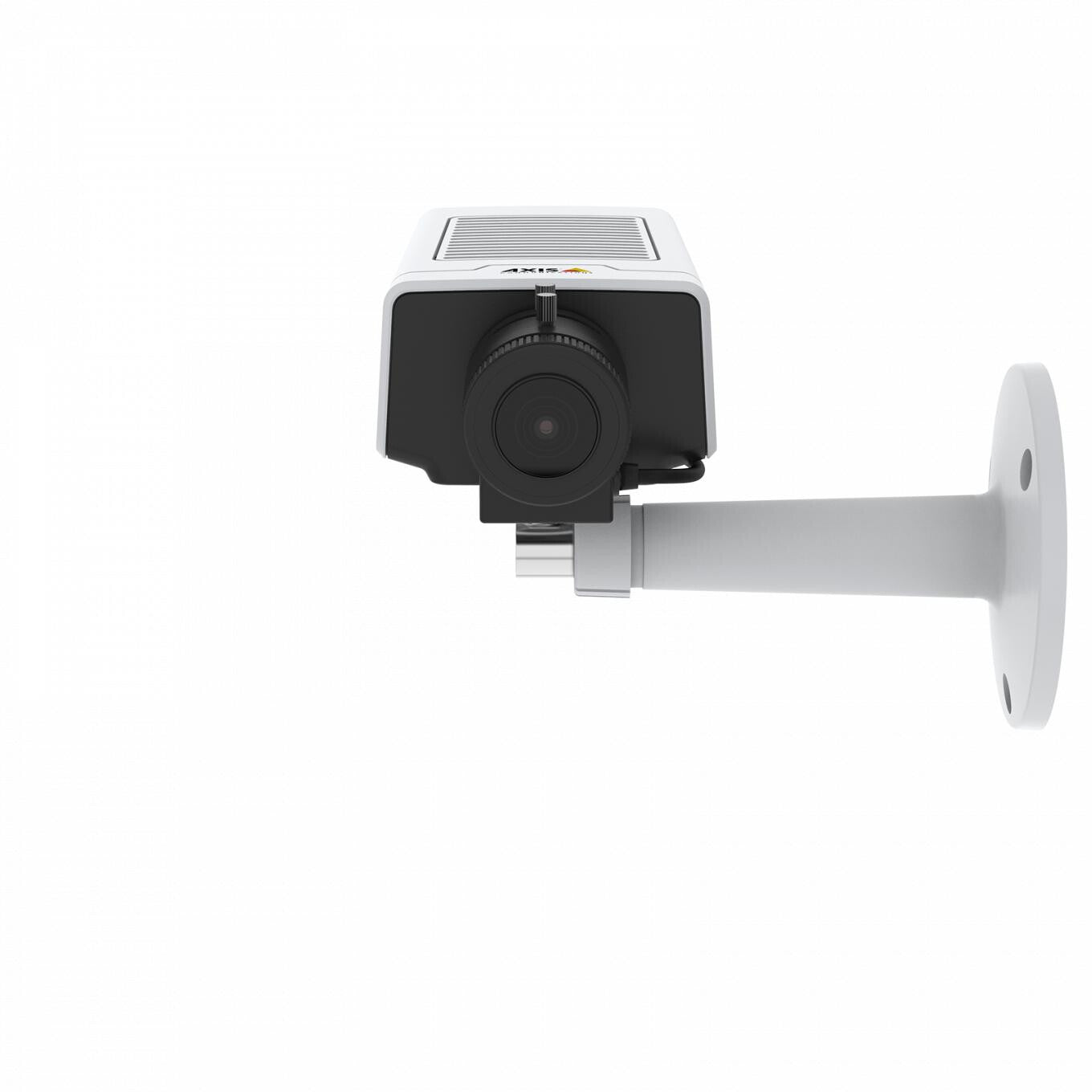

AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

Performance
Certification EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78NIST SP500-267
Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Number of languages 12
Infrared (IR) cut-off filter Yes
Day/night mode Yes
Wide Dynamic Range (WDR) Yes
PTZ modes Digital PTZ
PTZ control Yes
Connectivity technology Wired
Placement supported Indoor
Type IP security camera
Design
Housing material Polycarbonate (PC)
LED indicators Yes
Product colour Black
Mounting type Ceiling/wall
Form factor Box
Camera
Camera shutter speed 1/33500 - 2 s
Lens viewing angle, vertical 49°
Lens viewing angle, horizontal 90°
Minimum illumination 0.02 lx
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 3 mm (1 / 3")
Number of sensors 1
Sensor type CMOS
Lens system
Focal length range 3 - 10.5 mm
Number of lenses 1
Night vision
Night vision Yes
Video
Image quality adjustment Brightness, Colour depth, Contrast, Sharpness
Bit rate control Variable Bit Rate (VBR)
Gain control type Auto
Video streaming Yes
Video intelligence analytic Yes
Frame rate 30 fps
Supported video modes 1080p
Supported graphics resolutions 160 x 90, 1920 x 1080 (HD 1080)
Video compression formats AVC, H.264, H.265, HEVC, M-JPEG
Total megapixels 2 MP
Maximum resolution 1920 x 1080 pixels
Audio
Audio detection Yes
Voice codecs G.711, G.726, OPUS
Built-in microphone Yes
Sample rate 48 kHz
Audio formats supported AAC-LC, ADPCM, LPCM, PCM
Audio input channels 1.0 channels
Audio system 1-way
Network
Quality of Service (QoS) support Yes
Streaming method Multicast, Unicast
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet interface type Fast Ethernet
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Flash memory 512 MB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
DC-in jack Yes
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
Security
Video motion detection Yes
Active tampering alarm Yes
IP address filtering Yes
HTTPS encryption Yes
Security algorithms EAP-TLS
Password protection type User
Password protection Yes
Power
DC output voltage 8, 28
Power consumption (Power over Ethernet (PoE)) 6.49 W
Power consumption (max) 6.49 W
Power consumption (typical) 3.8 W
Power source type DC, PoE
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -20 - 50 °C
Weight & dimensions
Height 46 mm
Depth 148 mm
Width 70 mm
Packaging content
Manual Yes
Mounting kit Yes
Number of cameras 1
