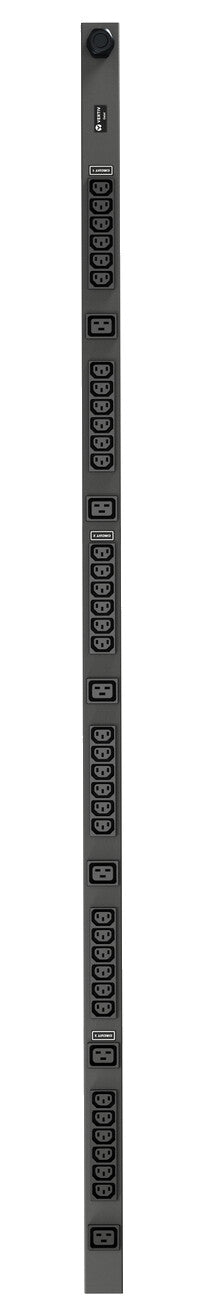

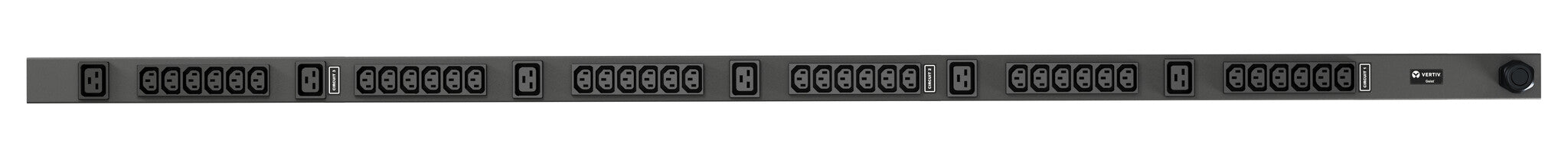

Vertiv Geist rPDU, basic, 0U, input IEC60309 230/400V 3x16A, outputs (36)C13 | (6)C19 power distribution unit (PDU) 42 AC outlet(s) Black
Vertiv Geist rPDU, basic, 0U, input IEC60309 230/400V 3x16A, outputs (36)C13 | (6)C19 power distribution unit (PDU) 42 AC outlet(s) Black
Vertiv Geist rPDU, basic, 0U, input IEC60309 230/400V 3x16A, outputs (36)C13 | (6)C19 power distribution unit (PDU) 42 AC outlet(s) Black
Vertiv Geist rPDU, basic, 0U, input IEC60309 230/400V 3x16A, outputs (36)C13 | (6)C19 power distribution unit (PDU) 42 AC outlet(s) Black

Vertiv Geist rPDU, basic, 0U, input IEC60309 230/400V 3x16A, outputs (36)C13 | (6)C19 power distribution unit (PDU) 42 AC outlet(s) Black

Vertiv
£704.99
Stock Available: 0
  • 0U basic rack PDU that provides reliable power for both edge and enterprise data center locations
  • All Vertiv Geist power distribution units undergo individual testing for functionality to ensure your network is powered by a reliable rPDU
  • UL-listed, so it meets an important requirement for many data centers
  • (36) IEC C13 (6) IEC C19 receptacles/ 3P+N+E (IP44)/ 16A/ 230/400V WYE/ 11.0kW capacity
  • Three-year warranty is extendable to five years if unit is registered within 120 days of purchase

The Vertiv Geist Basic Rack PDU VP7557 is a 16A, 230/400V WYE, 0U vertical rack power distribution unit (PDU). It has 36 C13, 6 C19 outlets, and a 3P+N+E(IP44) plug that provides 11.0kW in power capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

Design
Product colour Black
Mounting Vertical
Rack capacity 0U
Type Three-phase
PDU types Basic
Ports & interfaces
Output connections 36 x C13 & 6 x C19
AC outlet types C13 coupler, C19 coupler
Power plug IEC 60309
AC outlets quantity 42 AC outlet(s)
Features
Cable length 3 m
LED indicators No
Power
Maximum input current per phase 16 A
Load capacity 11000 VA
AC input frequency 50 Hz
Nominal input voltage 230/400 V
Certificates
Certification CE, RoHS, CB
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 6.6 kg
Height 51 mm
Depth 51 mm
Width 1683 mm
Packaging data
Package height 159 mm
Package depth 223 mm
Package width 1829 mm
Package weight 7.71 kg
General
Product family Geist
